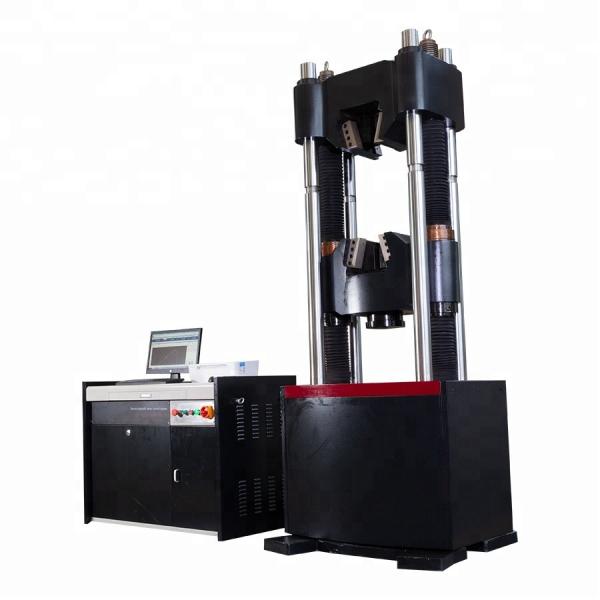

30 Ton Hydraulic Tensile Compression Tester With Computer Control Display

Product Categories
SUZHOU KING ENTER IMPORT AND EXPORT CO., LTD.
Contact Now

30 Ton Hydraulic Tensile Compression Tester With Computer Control Display

  • 1
  • 2

Place of Origin : Shandong, China (Mainland)

Brand Name : MARXTEST

Model Number : UTM-300D

Price : US $5,500-11,000 / Sets | 1 Set/Sets (Min. Order)

MOQ : 1 Set/Sets

Power : Hydraulic

Usage : Universal Testing Machine

Capacity : 300kn

Measuring range : 6kn - 300kn

Accuracy : class 1 / class 0.5 is optional

Display : computer control and display

piston stroke : 200mm

Material : bolts and nuts

Contact Now

30 Ton Hydraulic Tensile Compression Tester With Computer Control Display

Description

computer control electro-hydraulic servo universal testing machine is a superior model of UTM 7000. It is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing strength. It can be capable of testing the characters of materials on physical & technology properties. Equipped with the computer & software & printer, it can display, record, process and print the test results, and control test procedures as the set program and can draw test curves automatically in real time. The machine complies with ASTM, DIN, ISO standards. It is simple, easy to operate and widely used in works, laboratories and universities for material properties research and quality control.

Universal Testing Machine D-series are the most popular ones for testing metal samples, concrete, rebar, tube & pipe, stranded wire, steel bar & plate, fasteners,wood and high-strength composites.

Suitable for tension test, compression test, bending test for bolts and for nuts.

It has special bolts grips, it will be installed on hydraulic grips.

Main Features

Model

UTM-300D

UTM-600D

UTM-1000D

Max. Load

300KN

600KN

1000KN

Accuracy

grade 0.5

Distance between columns

520mm

565mm

Max. Tensile space

650mm

600mm

Max. Compression space

550mm

490mm

Round clamping range

Φ10-Φ32mm

Φ13-Φ40mm

Φ13-Φ60mm

Flat clamping range

0-15mm

0-30mm

0-40mm

Compression plate size

Φ150mm

Φ150mm

180*180mm

Roller span

30-240mm

30-240mm

100-800mm

Machine (L×W×H)

840×620×2210

840×620×2210

1100x900×2510

Weight

About 1500kg

About 2000kg

About 3500kg

Applied Standards

  • Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
  • Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4
  • Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1
  • ISO6892: DIN EN 10002-1, JIS Z2241, BS-18, ASTM E8: Metallic Material-Tensile Testing at Ambient Temperature.

Advantages:

  • Accuracy class 0.5 (EN ISO 9513)
  • High resolution over the whole measuring range (0.1 or 1 µm)
  • Double-sided measurement via 4 sensors
  • Initial gauge length from 10 mm
  • Automatic movement to the position and gauge length
  • Automatic attachment at specimen
  • Very low clamping forces (ca. 0.5 N)
  • Measuring displacement of 800 mm minus gauge length
  • Lowest activating forces (<1 cN)
